Level IV ESAPI, standalone plates designed to stop armor-piercing threats while preserving mobility. Engineered to exceed NATO and NIJ standards, proven in the most demanding field conditions.
Technical Data

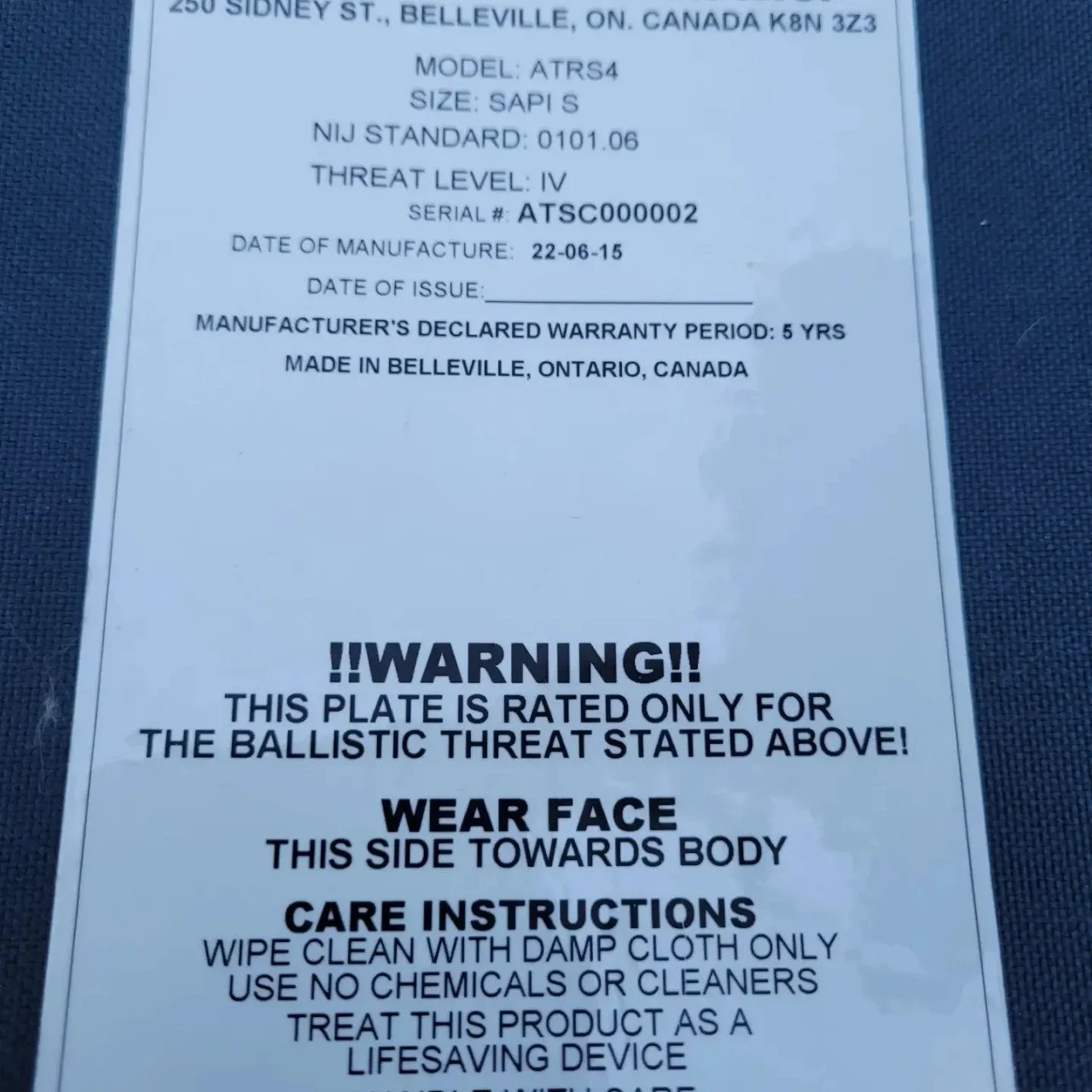

Resistance level: NIJ 0101.06
Test performance: exceeded NIJ IV by ~30% in V50 testing
Threat protection: multi-hit AP rifle rounds
Verified round: .30-06 M2 AP black-tip at 982 to 1004 m/s
Plate thickness: 25 mm
Strike face: monolithic ceramic, full edge-to-edge coverage
Weight: 3.6 kg per plate
Spall mitigation: external aramid (Kevlar) covering
Size: Medium ESAPI, 24.1 × 31.8 cm
Shape: curved, shooter cut
Material origin: EU & North America
Manufacturing: 100% in Canada, no subcontracting
ITAR status: ITAR-Free
Manufacturer: Aratech Research
