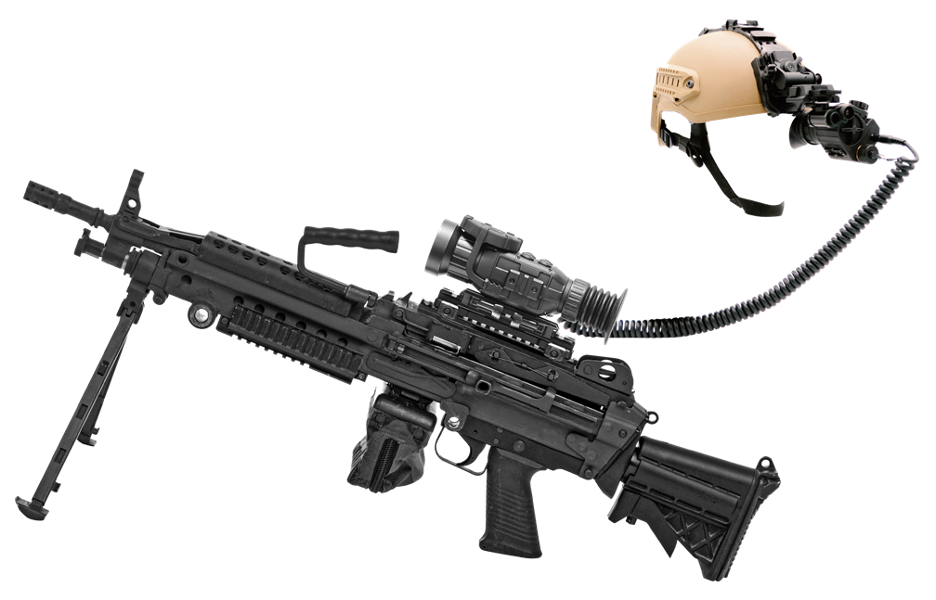

Thermal weapon sight built for direct engagement and counter-UAS operations on light and heavy machine guns.
Technical Data

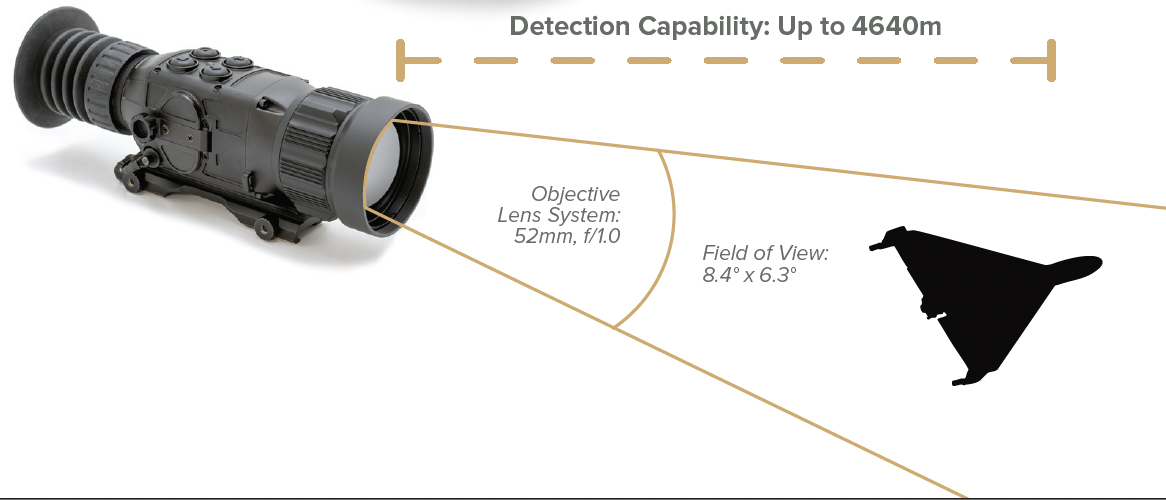

Detection capability: up to 4640 m on NATO size target
Objective lens: 52 mm, f/1.0
Field of view: 8.4° × 6.3°
FPA resolution: 640 × 512, 12 μm
FPA sensitivity: NETD < 40 mK
Refresh rate: 50 Hz
Digital zoom: 1×, 2×, 4×
Battery life: up to 14 hrs on 2× CR123
Weight: 950 g
Environmental protection: IP67 / IP68, N2 purged
Operating temperature: −40°C to +50°C
Country of manufacture: Canada
ITAR status: Non-ITAR
Manufacturer: GSCI Advanced Photonics
